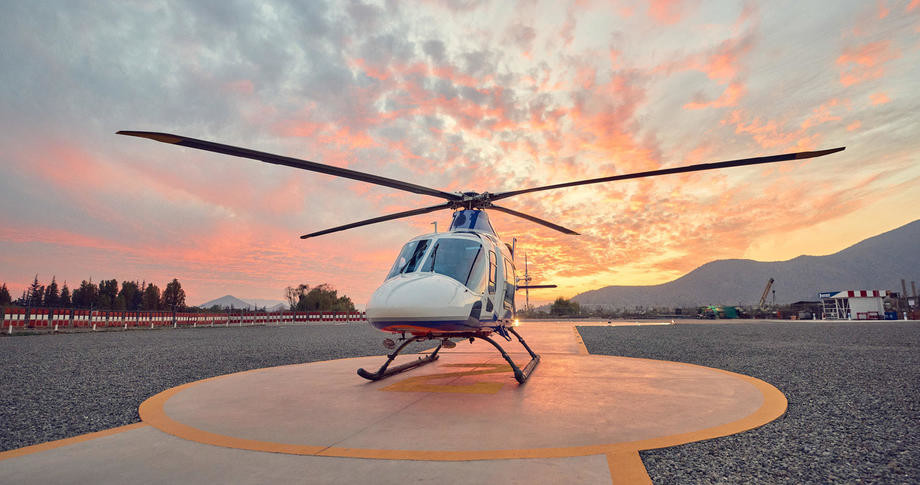

2019 Leonardo AW119Kx for sale, Chile
Price: USD $2,950,000 Price Reduced
South America, Chile
Year
2019
S/N
14963
Reg
CC-DDR
TT
665
Aircraft Description
Air Conditioning
Soundproofing
Convertible VIP
& Emergency Stretcher Interior
Cargo Hook FP/RP & Bambi Bucket FP
AFCS 3-axis Duplex Honewell Autopilot
4-cell Fuel System @ 188 USgal
High Visibility Pax Doors
24.000 ft / 7.300 m Altitude Kit
Warranty: 3 Years / 2000 Hours
AIRFRAME / ENGINES / APU / WEIGHT / TOTAL LANDING
AIRFRAME
665 Hours Since NewAluminium alloy and bonded panel fuselage
Semi-monocoque aluminium alloy tail boom
New reinforced skid type landing gear
Two hinged jettisonable crew doors (LH & RH)
Two sliding passenger doors (LH and RH), 1.10 m opening, with jettisonable windows
Passenger short foot step (LH & RH)
Acrylic windshield and side windows
Overhead cockpit transparent windows
Lower cockpit transparent windows
Removable fibreglass tail rotor gearbox fairing
Quick removable tail rotor drive shaft cover
Separate baggage compartment with hinged door
Three jacking points
Removable fairing and cowlings, for complete accessibility to the controls and drive components
Quick opening hinged inspection doors, to allow visual check of engine oil levels and maintenance inspection points
Grounding points
ENGINES
Pratt & Whitney CanadaPT6B-37A turbo-shaft engine
- AVIONICS & CONNECTIVITYGarmin G1000HTM Integrated Flight Deck system comprising:
Two GDU-1040 10.4” display units providing a Primary Flight Display (PFD) and a Multifunction Display (MFD) and integrating:
Radio tuning controls
Flight Management System (FMS)
Synthetic Vision System
Helicopter Terrain Awareness and Warning System (HTAWS)
Two GEA-71H Aircraft Interface Unit with integral Central
Maintenance Computer (CMC)
Two GSC-46 Signal Conditioners
GRS-77H AHRS
GDC-74H Air Data Computer (ADC)
Two GIA-63H Integrated Avionics Units (IAU) comprising:
COM 1&2
NAV 1&2
GPS 1&2
Aural Alert Generator
DME tuning interface
GTX-33H Mode-S Transponder with Extended Squitter (ES) capability
Digital Audio Control System (DACS) COBHAM with two cockpit panels
Magnetic Compass indicator
L3 Avionics System ESI-2000 Electronic Standby Indicator
Engine Hour meter
AC power supply system (2 inverters)
AFCS 3-axis duplex SP-711 Honeywell
ELT C406-N HM Artex - EXTERIORCustomized painting High Altitude Scheme in metallic colors
- Additional Equipment & InformationAir intake / exhaust covers
Ground tools kit (including tow bar, ground wheels, lifting tool)
Pitot tubes covers
Rotorcraft Flight Manual (RFM) and technical publications
Tie-down fitting (main rotor retention straps)
STANDARD EQUIPMENT
28 Ah Battery (in lieu of 22 Ah Battery)
Active Noise Reduction (ANR) headsets (pilot and co-pilot)
Baggage Compartment lights
Crew open door actuators
First aid kit
Fuel drain electrical valves
Portable fire extinguisher
Quick disconnecting chip detectors
Shoulder harness with inertial reels (pilot and co-pilot)
Tail boom strake
UTILITY EQUIPMENT
Air Conditioning
188 USGal Fuel System
Floor Rails
Cargo Hook primary (1400 Kg) – Provisions
Bambi Bucket– Provisions
High Visibility Passenger Doors
Additional Foldable Stretcher (qty 1)
Additional Cargo Hook Kit 3.086 lb / 1.400 kg
LOOSE EQUIPMENT
Additional aft facing sliding/rotating seat Qty 1
Electrical Load Analysis (ELA) dedicated to SN 14963
OPTIONAL EQUIPMENT
Utility Convertible Interior
Covered Seats
Soundproofing
Cabin Loudspeakers
Provisions for locking system for stretchers on aft panel
seats, aft and central bench
