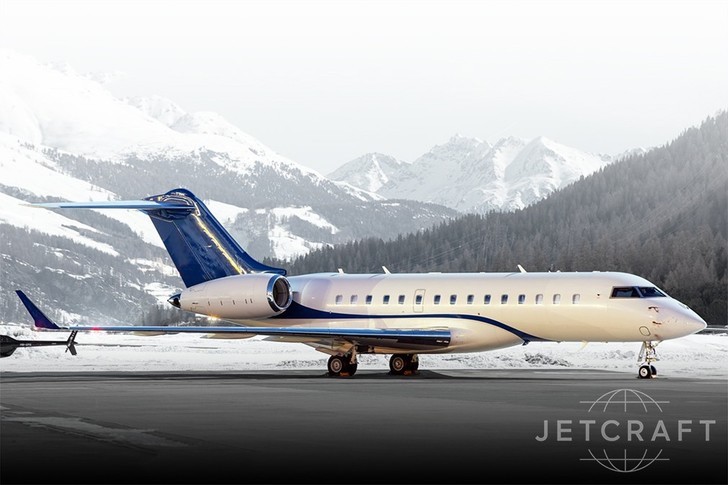

2015 Bombardier Global 6000 for sale, Singapore

Inspection Last Performed Next Due

15 Month Check May 2021 March 2022
30 Month Check May 2021 June 2023
60 Month Check May 2021 December 2025
120 Month Check - December 2025
 

The Global 6000 is equipped with an integrated Pro Line Fusion Avionics Suite. A general summary of this aircraft’s avionics suite is as follows:

Type of Unit Quantity Unit Description
EFIS (Electronic Flight Instrument System) Dual Integrated
FMS (Flight Management System) Triple Integrated
GPS (Global Positioning System) Dual Collins GPS-4000S
IRU (Inertial Reference Unit) Triple Honeywell
NAV (Navigation Radio) Dual Collins NAV-4000
DME (Distance Measuring Equipment) Dual Collins DME-4000
IFIS (Integrated Flight Information System) Triple Collins Pro Line Fusion IFIS
EVS (Enhanced Vision System) Single Bombardier
HGS (Head Up Guidance System) Single Bombardier
SVS (Synthetic Vision System) Single SVM-6110H
ADF (Automatic Direction Finder) Dual Collins NAV-4000
FLT DIR (Flight Director) Dual Integrated AFCS (Auto Flight Control System)
A/P (Autopilot) Dual Integrated AFCS (Auto Flight Control System)
VHF COM (Very High Freq. Communication) Triple Collins VHF-4000
HF COM (High Freq. Communications) Dual Collins HF-9031A
SATCOM (Satellite Communications) Single Collins SDU-2200-2
RADAR (Weather Radar) Single Collins RTA-4118
LDS (Lightning Detector System) Single L3 WX-100E
RADAR ALT (Radar Altimeter) Dual Collins ALT-4000
XPNDR (Transponder) Dual TDR-94D + TSS-4100
SELCAL (Selective Calling System) Dual RIU-4110
TAWS (Terrain Awareness Warning System) Single Collins TP-6000
TCAS (Traffic Collision Avoidance System) Single Collins TSS-4100 TCAS II w/ Change 7.1
CVR (Cockpit Voice Recorder) Single L3 FA2100 SSCVR (2 Hour)
FDR (Flight Data Recorder) Single L3 FA2100 SSFDR (25 Hours)
ELT (Emergency Locator Transmitter) Single Artex 406-4
QAR (Quick Access Recorder) Single QAR-100

NAVIGATION & COMPLIANCE
RVSM BRNAV/ PRNAV
ADS-B Out FANS / CPDLC

Number of Passengers Thirteen (13)
Galley Location Forward
Forward Cabin Configuration Four (4) Club Seats with Pull-Out Tables
Mid Cabin Configuration Four (4) Place Conference Grouping opposite a Credenza
Aft Cabin Configuration Dual opposing Three (3) Place Divans (RH Divan only 2 seats approved for TTOL)
Lavatory Location(s) Forward and Aft
Crew Rest Yes
Jumpseat Yes
Galley Equipment: Microwave Oven, High Temperature Oven, Coffee Maker
Notable Features May 2021 @ BAS Singapore 60M Inspection - Both Divans & Exit Cushion recovered,
Fwd & Aft lavatory panels recovered, Aft Lavatory mirror replaced, some cabinetry touch ups and re-finish.


CONNECTIVITY
Type of Unit Description
High Speed Internet SwiftBroadband
Wireless LAN Yes
Telephone System Yes

ENTERTAINMENT
Type of Unit Description
Display/TV Monitor(s) 2 x 24” Bulkhead Monitors
Airshow System Yes
Blu-ray/CD/ DVD/ MP3 Players Dual Blu-Ray player

Base Paint Color Overall Matterhorn White
Stripe Color Blue stripe on body, Blue Tail & Winglets

OTHER NOTABLE FEATURES
SB 700-31-6002 - FAR 135 Operations Crew Measurement System
SB 700-25-6023R2 – Installation of EFB tablet Holders & Smart Chargers
SB 700-11-6002 – Increase MTOW to 99,500 lbs.
SB 700-57-6003/6005/6006 - Flap Corrosion / Drainage / Chafing
